      Latex washing and drying integrated machine series

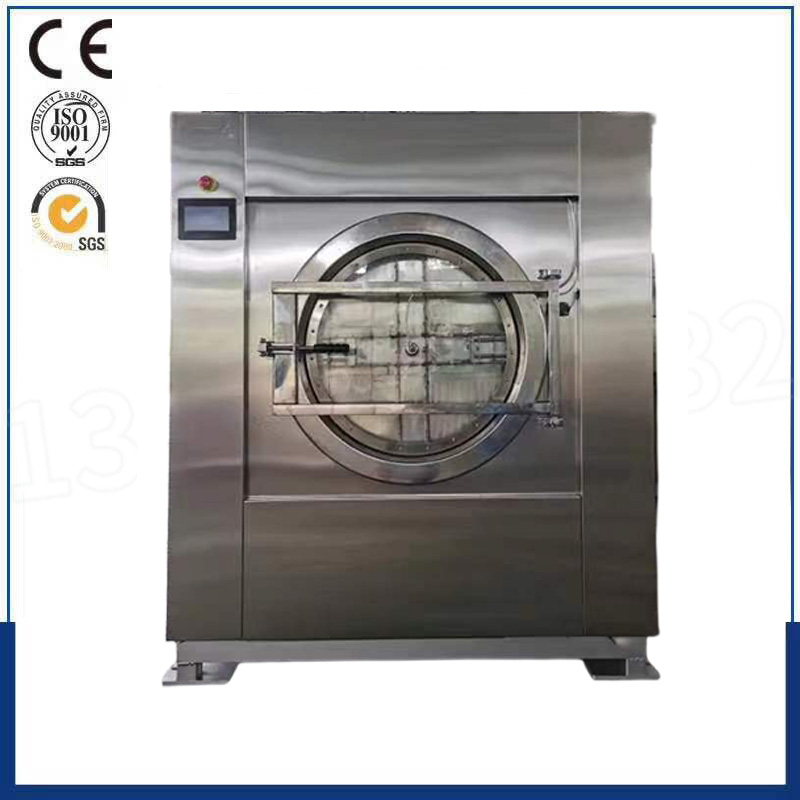

      XTQ-100 latex washing and drying integrated machine

      • XTQ-100 latex washing and drying integrated machine
      • XTQ-130 latex washing and drying integrated machine

      一、 Main Parameter for Washing Extracting Drying Machine



      Type

      XTQ-100

      XTQ-130

       rated capacity

      Min

      kg

      70

      90

      Max

      kg

      100

      130

      Drum

      Diameter

      mm

      1470

      1470

      Diameter deepness

      mm

      880

      1160


      Hight

      mm

      2750

      2750

      Length

      mm

      1700

      1700

      Width

      mm

      2050

      2330

      Drum speed

      Washing rotate speed

      r/min

      31

      31


      Steam Pressure

      Mpa

      0.4-0.6

      0.4-0.6


      Pump

      kw

      0.37

      0.37


      Fan Motor

      kw

      2.2

      2.2

      Motor

      kw

      11

      15


      Inverter

      kw

      18 kw-3 kw

      22 kw-3 kw

      Draining valve

      mm

      DN100*2

      DN100*2


      Dry Steam Pipe



      DN40

      DN40

      Water Inlet Valve


      Wind Exhaust Pipe



      DN250

      DN250

      Cold water pipe



      3/2""

      3/2"

      Steam pipe



      1"

      1"

      Power supply



      Standard:380+N-3PH-50HZ


      2、 Product Introduction

         Product Introduction: The latex washing and drying integrated machine has a fully computerized LCD human-machine dialogue operation interface, a large Chinese display screen, and 30 different washing programs to choose from. It can meet any washing and drying requirements, fully realizing the automation of washing, bleaching, jigging, drying and other processes. It can be safely placed on any floor without the need for a foundation. The fully automatic washing and drying integrated machine adopts a frequency conversion system, which is easy to adjust speed, stable to start with low noise, obvious energy-saving effect, and simple and reliable transmission structure. The latex washing and drying integrated machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of 304 stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care. This series of models has options for steam heating, electric heating, and natural gas heating.
